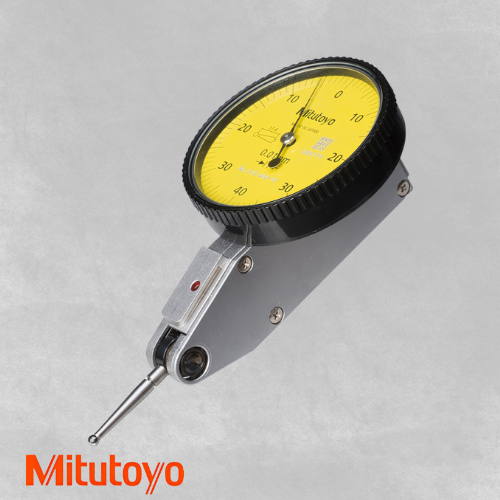

Mitutoyo 513-404-10E

513-404-10E

Dial Test Indicator w/ Horizontal Type

0,8 mm, 0,01 mm, 8 mm Stem

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

Product Specifications

Digital/Analog:
Analog
Inch-Metric:
Metric
Type:
Basic set
Delivered:
In a box with stem ø8 mm, stylus ø2 mm
Range:
0.8 mm
Dial reading:
0-40-0
Graduation:
0.01 mm
MPE any 10 scale divisions:
5 µm
MPE any 1/2
revolution:
6 µm
MPE measuring range:
8 µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Measuring force:
0.01-0.3 N
Carbide stylus tip ø2 mm No.:
103006
Mass:
45 g
Contact point:
Thread M 1.7 x 0.35
