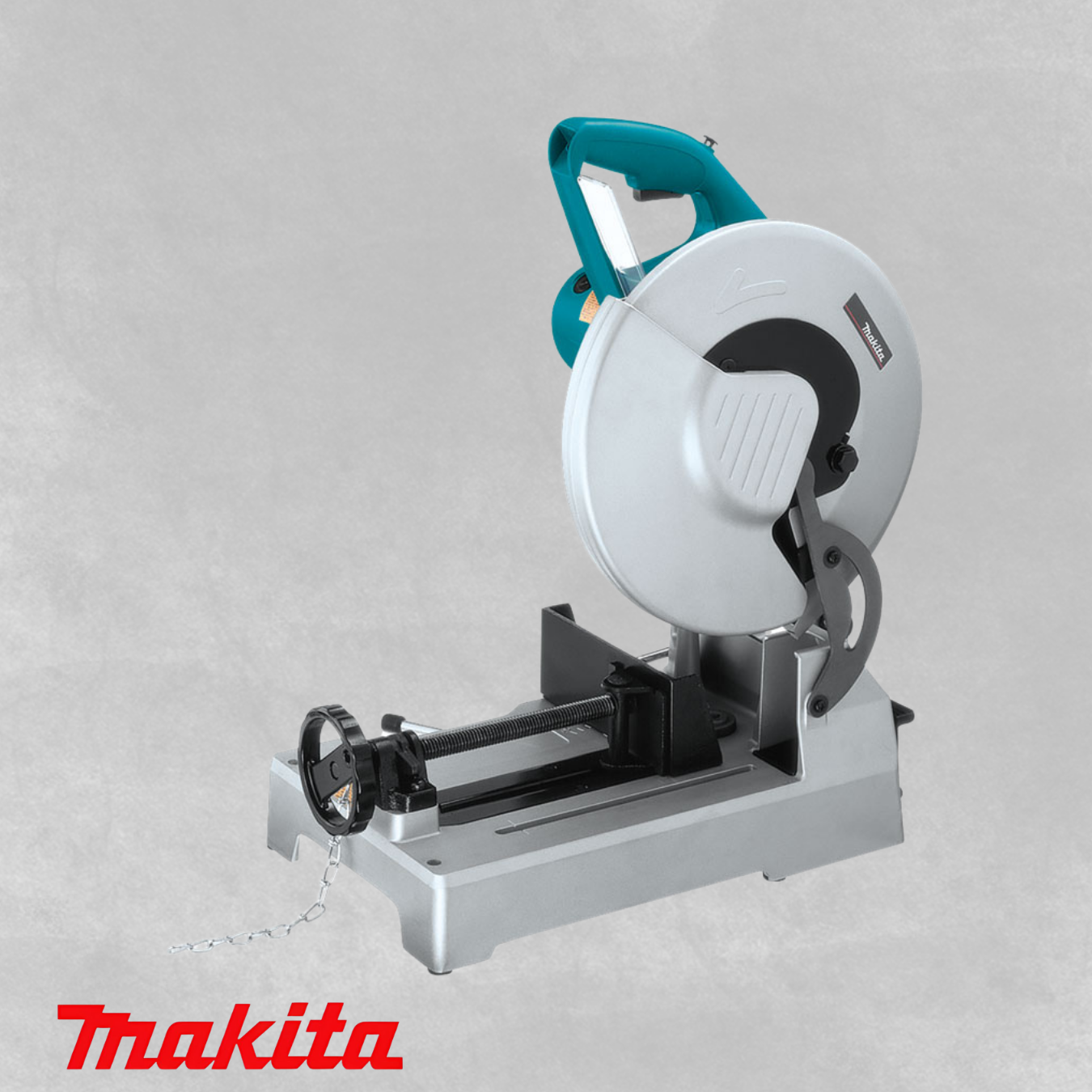

Makita LC 1230

LC 1230

Metal Cutting Saw

305 mm (12") 1.750 Watt Metal Cutting Saw

  • For Cutting in Pipe, Angle Iron, Conduit and More
  • Carbide-tipped blade lasts 50x longer than abrasive wheels; cuts clean, accurate and virtually burr-free
  • Quick release vise for secure material retention and fast, repeated cut-offs
  • Lock-off button for user convenience
  • Quick release support fence adjusts 0-45° for miter cutting
  • Shaft lock for easy blade changes with just one wrench
  • Powerful 1,750W motor for the most demanding applications
  • 4x faster cutting in light pipe, angle iron, tubing, conduit and channel than abrasive cut-off saws
  • D-shape handle for user comfort
  • Socket wrench stores on base for convenient blade changes
  • Shavings collection tray for easy waste disposal and a cleaner work environment
  • Large cast aluminum base for stability
  • Externally accessible brushes for greater serviceability
  • Maximum cutting depth of 115 mm (4-1/2″) with carbide tipped blade
  • Double insulated

Product Specifications

Continuous Rating Input: 1.750 Watt
Blade Diameter: 305 mm (12")
Max. Cutting Capacity: 90°: 115 mm (4-1/2")
90°: 75 mm x 150 mm (2-15/16" x 5-7/8:)
45°: 90 mm (3-1/2")
45°: 85 mm x 85 mm (3-5/16" x 3-5/16")
No Load Speed (rpm): 1.300
Dimensions (L x W x H): 516 x 306 x 603 mm
Net Weight: 19,3 kg
Power Supply Cord: 2,5 m
