103-138

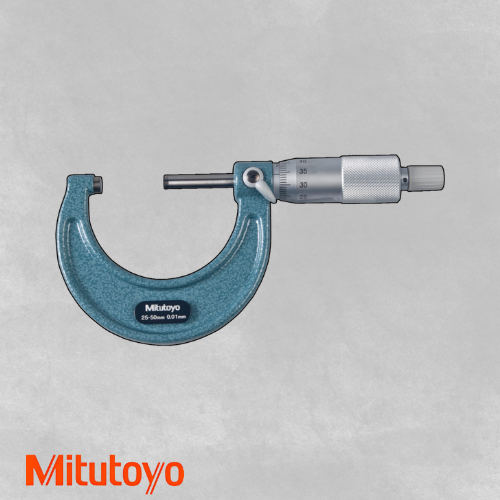

Outside Micrometer Economy Design

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.

Digital/Analog:	Analog
Delivered:	Including box, key, setting standard, certificate of inspection
Inch-Metric:	Metric
Range:	25-50 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±2 µm
Flatness:	0,6 µm
Parallelism:	2 µm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
Mass:	215 g
