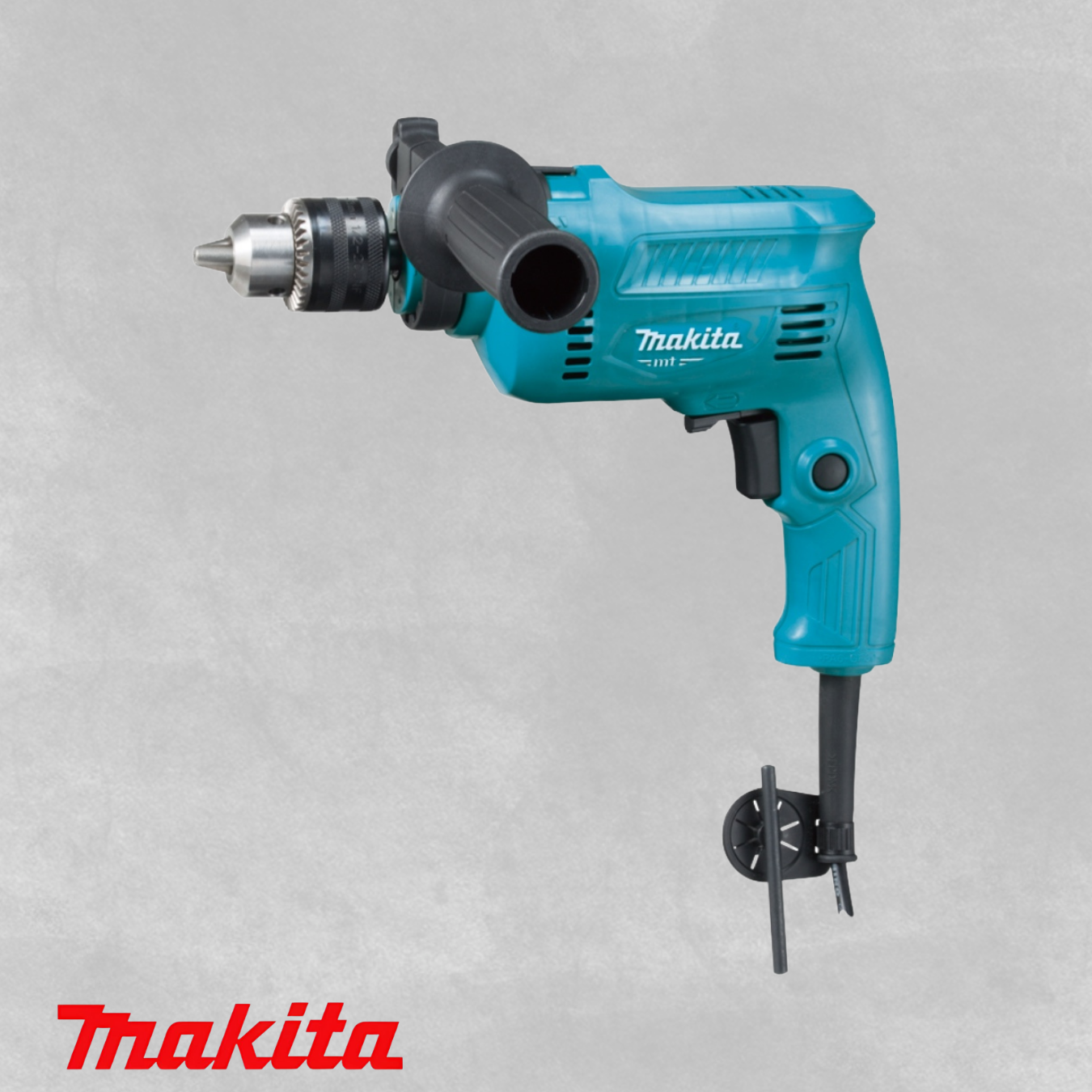

M 0801 B

Hammer Drill

High performance and durability at less expense
Powerful 500 W motor with 0-3,200 RPM & 0-48,000 BPM for the most demanding applications
In-line positive grip design maximises power thrust
Recessed lock-on button for continuous use
Reversing switch is conveniently located
360° swivel side handle
Variable speed control dial enables user to match the speed to the application
2-mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
Double insulated

Continuous Rating Input:	500 Watt
Capacity:	Concrete: 16 mm (5/8") Steel: 13 mm (1/2") Wood: 20 mm (13/16")
Blows Per Minute (bpm):	0 - 48.000
No Load Speed (rpm):	0 - 3.200
Vibration Level:	Hammer Drilling into Concrete: 14,5 m/s² Drilling into Metal: 4,0 m/s²
Sound Pressure Level:	94 dB(A)
Sound Power Level:	105 dB(A)
Dimensions (L x W x H):	261 x 69 x 195 mm
Net Weight:	1,7 kg
Power Supply Cord:	2,0 m
