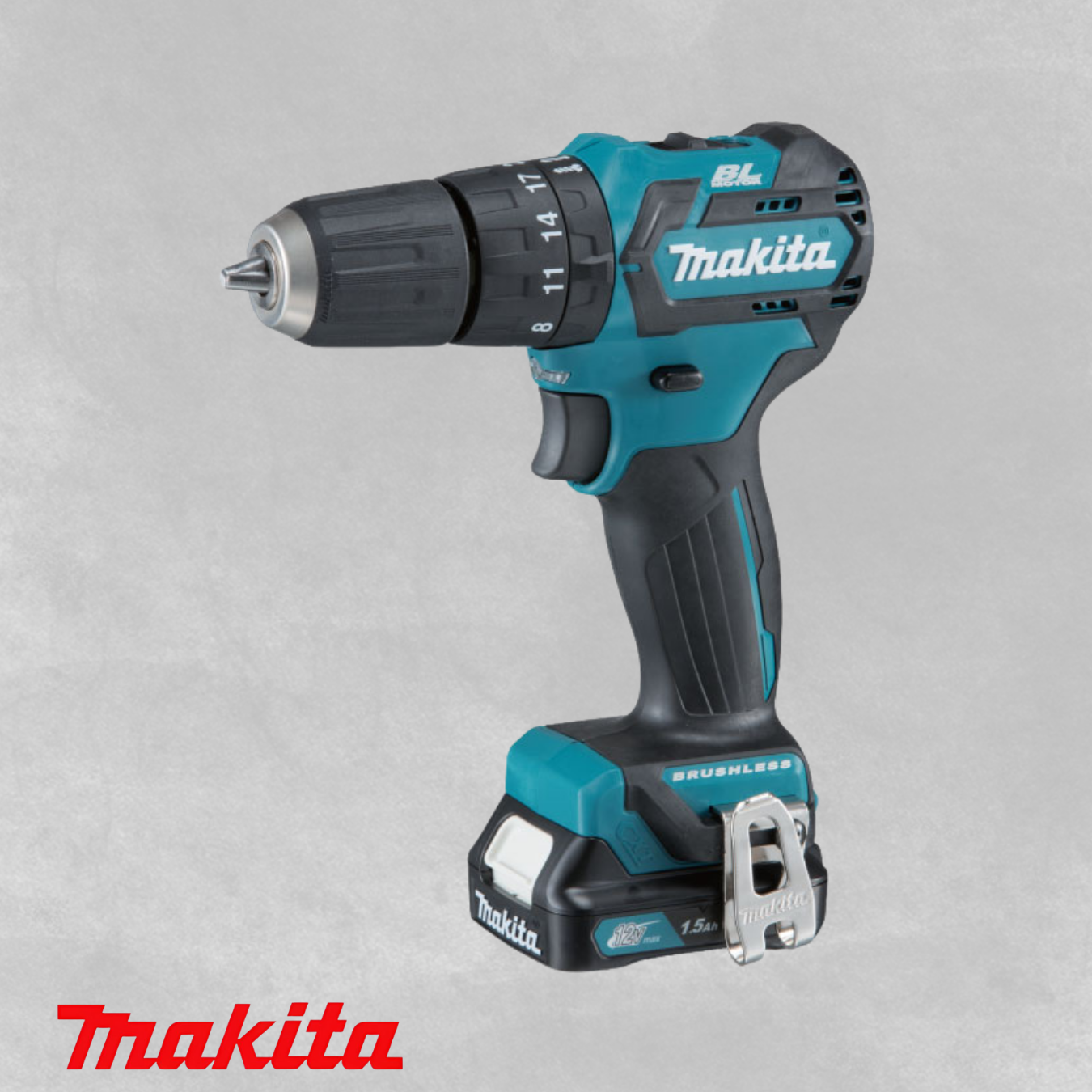

HP 332 DWAE

Cordless Hammer Driver Drill

Ultra-compact design and more work amount thanks to the newly developed BL motor and newly developed 12V max slide Lithium-Ion battery
BL motor delivers 35 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor with high power to weight and size ratio
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
0-22,500 IPM for fast hammer drilling in masonry materials
Compact and ergonomic design at only 168 mm long
Lightweight for reduced operator fatigue
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Ergonomically designed handle with soft grip provides increased comfort
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Variable 2-speed (0-450 & 0-1,500 RPM) for a wide range of drilling, fastening and hammer drilling applications
Best possible ergonomic handle for drilling applications
Convenient 10 mm keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating

Capacity:	Steel: 10 mm (3/8") Wood: 28 mm (1-1/8") Masonry: 8 mm (5/16")
Chuck Capacity:	0,8 mm - 10 mm (1/32" - 3/8")
Impacts Per Minute (ipm):	High: 0 - 22.500 Low: 0 - 6.750
No Load Speed (rpm):	High: 0 - 1.500 Low: 0 - 450
Max Fastening Torque:	Hard: 35 N•m Soft: 21 N•m
Max Lock Torque:	32 N•m
Vibration Level:	Drilling into Metal: 2,5 m/s² Hammer Drilling into Concrete: 12,5 m/s²
Vibration K Factor:	Drilling into Metal: 1,5 m/s² Hammer Drilling into Concrete: 1,5 m/s²
Sound Pressure Level:	82 dB(A)
Sound Power Level:	93 dB(A)
Dimensions (L x W x H):	168 x 66 x 217 mm
Net Weight:	1,1 kg
