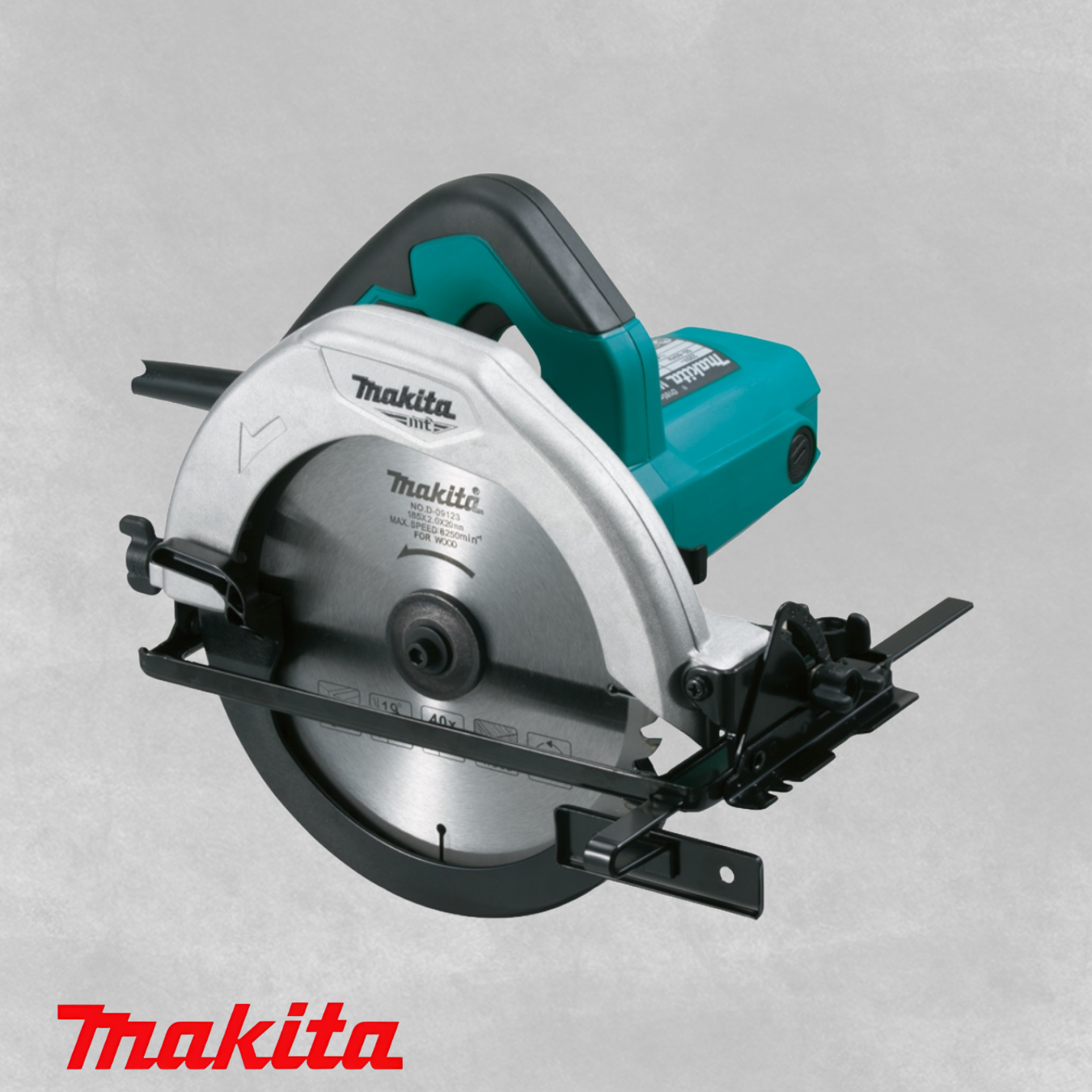

M 5801 B

Circular Saw

High performance and durability at less expense
Well-balanced and Lightweight for superior handling and performance
Ergonomically designed handle with soft grip covered with non-slip elastomer fits your hand perfectly to provide maximum comfort and control
Bevel cuts 0°- 45° for the most common cutting applications
Large cutting capacity (66 mm (2-5/8″) at 90°, 44 mm (1-3/4″) at 45°)
Powerful 1,050 W motor delivers 4,900 RPM for performance and job site durability
Handy rip fence (guide rule) allows operator to do extra-accurate straight cuts
Aluminum blade case for high durability and long tool life
Single action lever for quick adjustment of cutting depth
Flat motor housing design for stability when changing the blade
Onboard hex wrench for fast and easy blade changes
Two-stage safety trigger switch prevents accidental start up (For tool with Lock-off button)
Lock-on button for continuous use operation (For tool with Lock-on button)
Double insulated
Externally accessible brushes for easy serviceability

Continuous Rating Input:	1.050 Watt
Blade Diameter:	185 mm (7-1/4")
Max. Cutting Capacity:	90°: 66 mm (2-5/8") 45°: 44 mm (1-3/4")
No Load Speed (rpm):	4.900
Vibration Level:	Sanding Metal Plate: 2,5 m/s² or Less Cutting Wood: 2,5 m/s²
Dimensions (L x W x H):	284 x 231 x 243 mm
Net Weight:	3,5 kg
Power Supply Cord:	2,0 m
