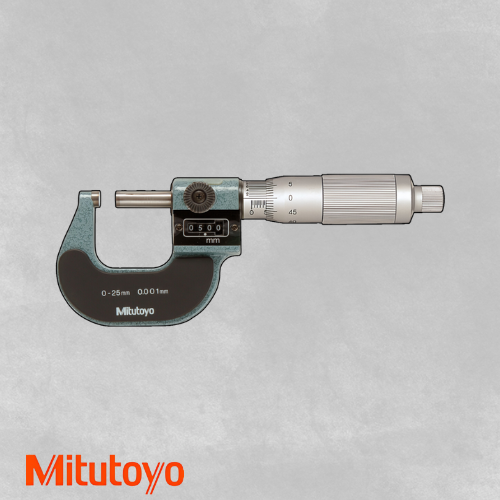

193-111

Digit Outside Micrometer

0 mm - 25 mm, 0,001 mm

A mechanical-digit Mitutoyo micrometer with a vernier scale on the sleeve to provide high resolution. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

Product Specifications

Digital/Analog:	Analog
Delivered:	Including box and spanner
Inch-Metric:	Metric
Range:	0 - 25 mm
Graduation:	0,001 mm
Max. Permissible Error J MPE:	±2 µm
Flatness:	0,6 µm
Parallelism:	2 µm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 15 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	224 g
