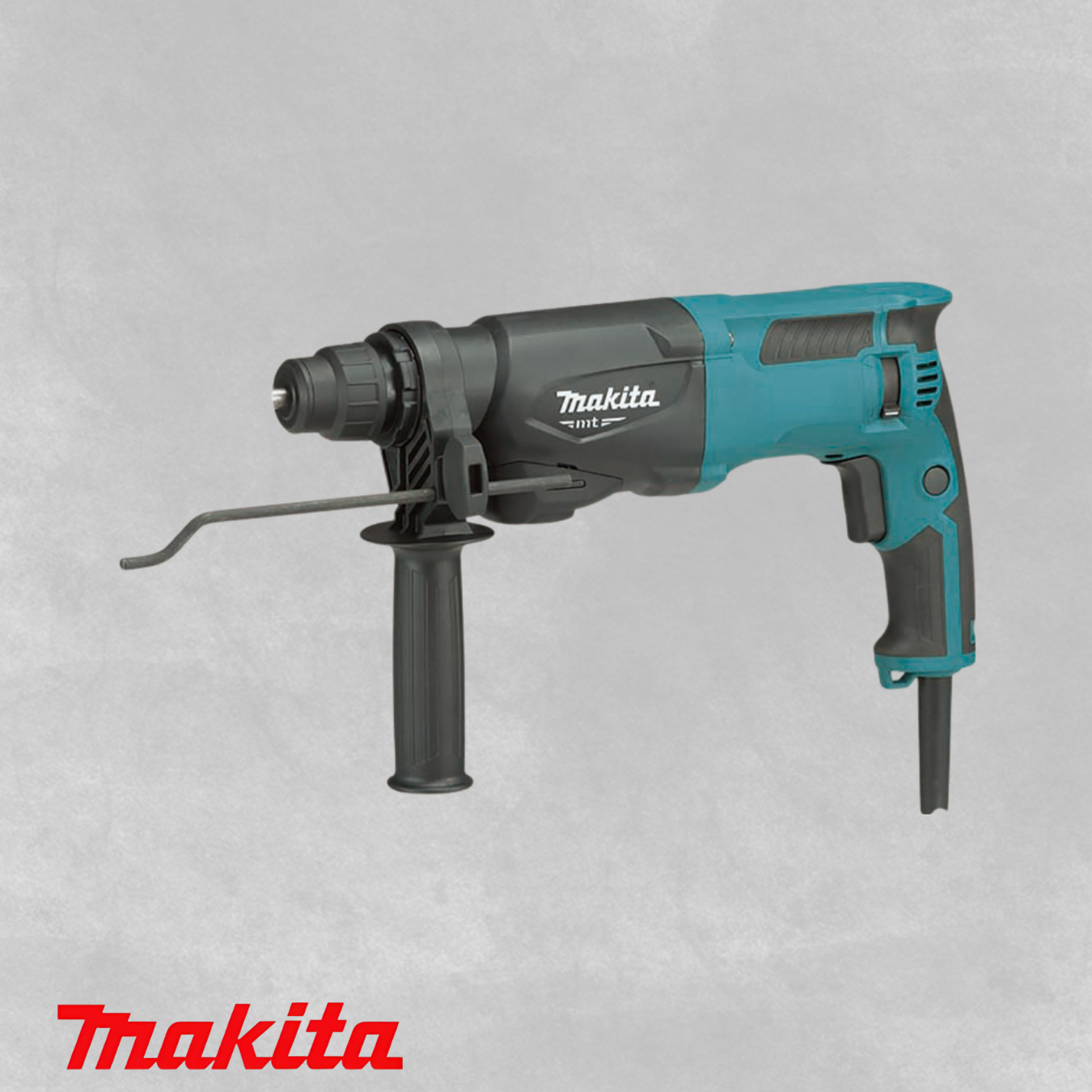

M 8700 B

Rotary Hammer Drill

High performance and durability at less expense
Re-located operating mode lever for increased protection and durability
Improved bit guide for increased bit stability during drilling applications
Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
Soft grip provides more comfort and control
Powerful 710 W motor delivers 1.9 J of impact energy to handle the most demanding applications
Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
Forward/reverse lever – position of the switch allows brushes to be positioned so that the drill maintains same speed and torque in forward and reverse
2-mode operation for “Rotation Only” or “Hammering with Rotation”
Variable speed trigger allows operator to adjust speed based on materials or application
One-touch sliding chuck for easy bit installation and removal
Depth gauge for increased drilling consistency
Recessed lock-on button for continuous use
Double insulated

Continuous Rating Input:	710 Watt
Impact Energy:	1,9 Joule
Capacity:	Concrete: 22 mm (7/8") Concrete (Core-Bit): 54 mm (2-1/8") Diamond (Core-Bit) w/ Dry Type: 65 mm (2-9/16") Steel: 13 mm (1/2") Wood: 32 mm (1-1/4")
Blows Per Minute (bpm):	0 - 4.350
No Load Speed (rpm):	0 - 1.100
Vibration Level:	Hammer Driling into Concrete: 15,5 m/s² Drilling into Metal: 3,0 m/s²
Sound Pressure Level:	90 dB(A)
Sound Power Level:	101 dB(A)
Dimensions (L x W x H):	362 x 71 x 194 mm
Net Weight:	2,5 kg
Power Supply Cord:	4,0 m
