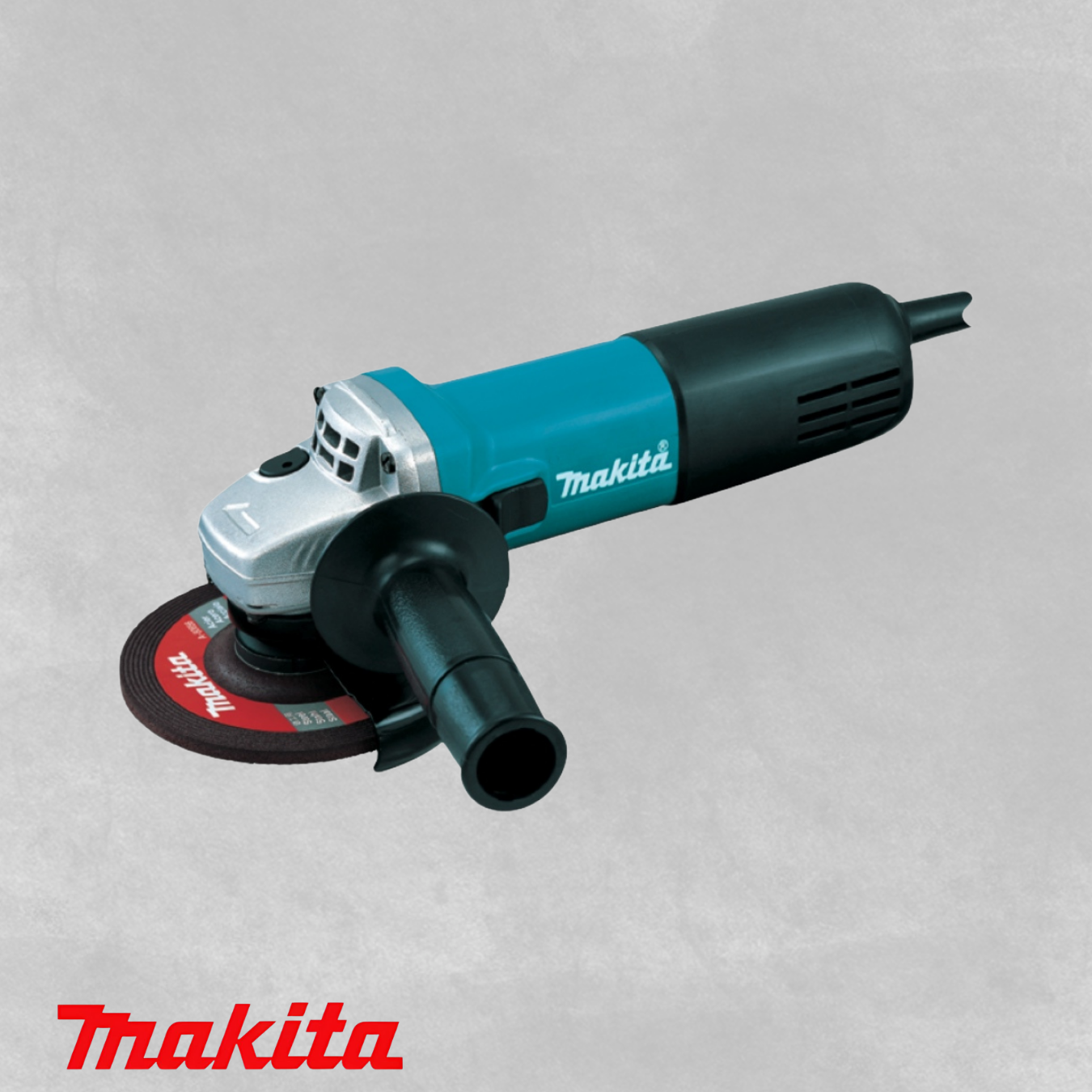

Makita 9558 HNG

9558 HNG

Angle Grinder

125 mm (5") 840 Watt Slide Switch Soft Start Angle Grinder w/ Anti-Restart Function

  • Anti-restart function prevents accidental start-up
  • Soft start for smooth start-ups
  • Reliable machined gears provide twice or more longer service life
  • Powerful 840 W motor delivers 11,000 RPM for high output power
  • Compact design with small diameter barrel and lightweight for added comfort
  • Protective zig-zag varnish seals the armature from dust and debris for longer tool life
  • Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
  • AC/DC switch for use with alternative power source (country-specific)
  • Thicker coil wires are wound more closely to reduce heat and energy loss
  • All-ball bearing design and metal gear housing for durability
  • Slide switch with lock-on for continuous use
  • Side grip can be positioned on both sides for operator convenience
  • Push button spindle lock for operator convenience
  • Gear housing can be rotated to suit most cutting and grinding applications
  • O rings for protection from grease-leakage
  • Switch lever conveniently located for one hand operation
  • Use of a woodruff key to assemble gear onto spindle allows for easier repairing of gear section
  • Can be connected to dust extraction system with optional dust collecting wheel guard
  • Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement.
  • Double insulated

Product Specifications

Continuous Rating Input: 840 Watt
Wheel Diameter: 125 mm (5")
No Load Speed (rpm): 11.000
Vibration Level: Surface Grinding: 8,5 m/s2
Vibration K Factor: Surface Grinding: 1,5 m/s2
Vibration Level: Disc Sanding: 2,5 m/s2
Vibration K Factor: Disc Sanding: 1,5 m/s2
Sound Pressure Level: 86 dB(A)
Sound Power Level: 97 dB(A)
Noice K Factor: 3 dB(A)
Dimensions (L x W x H): 271 x 140 x 106 mm
Net Weight: 1,7 kg
Power Supply Cord: 2,5 m
