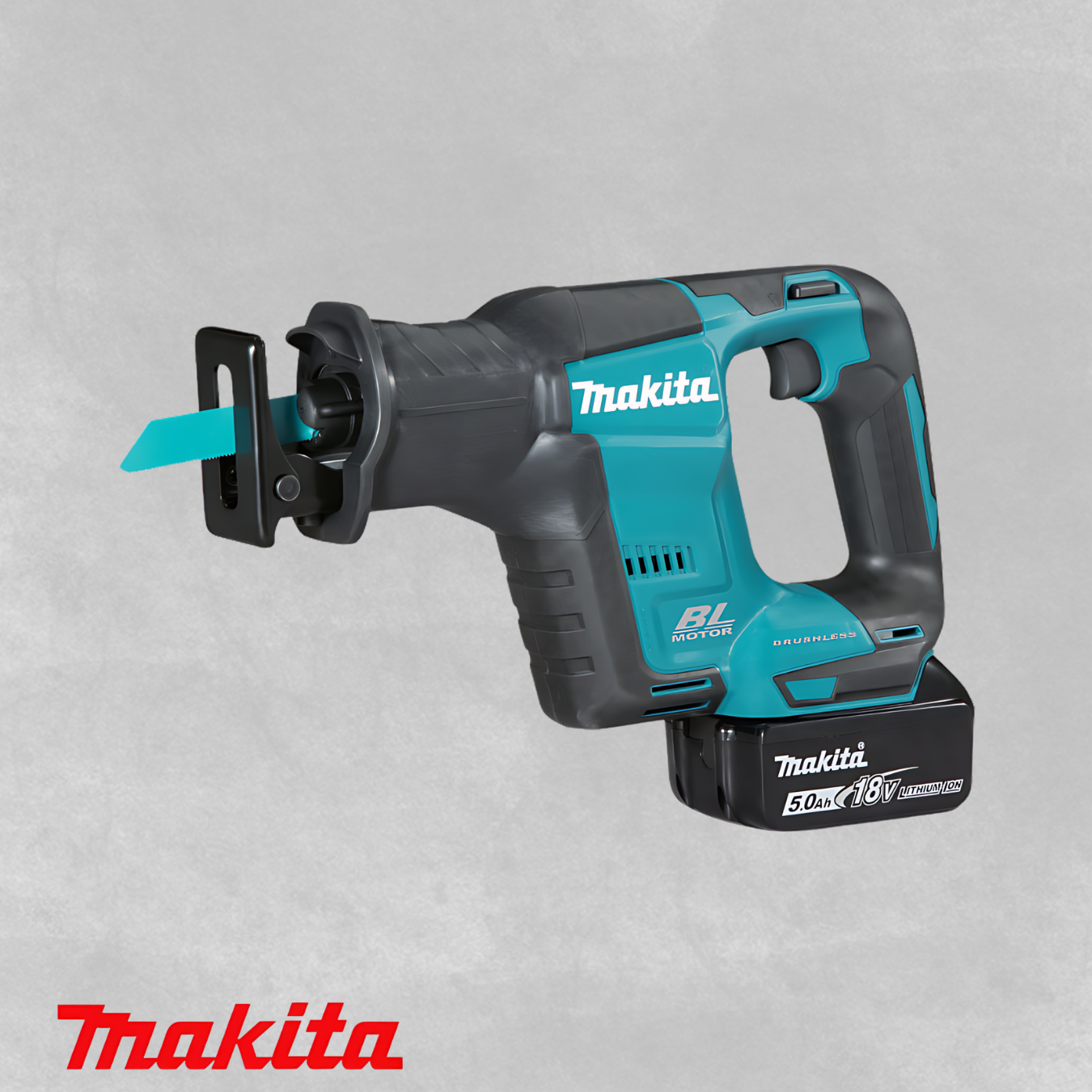

DJR 188 RTE

Cordless Recipro Saw

Newly designed vertical crank mechanism minimizes blade deflection and reduces vibration to machine
Higher cutting speed (Max 2,800 SPM) and modified stroke length (32 mm) provide higher cutting efficiency
Higher durability thanks to More durable mechanism to hold slider and More rigid shoe
Toolless blade change; Redesign of blade clamp makes it easier to remove a blade
Ergonomically designed handle with elastomer for more comfortable and controlled operation
Ergonomically designed handle fits your hand well, even during difficult cutting applications such as overhead application, cutting with the saw upside down, etc
Soft grip provides more comfort and control
Large 2-finger trigger for added convenience
Variable speed trigger for added convenience
Electric brake for increased operator safety
XPT (eXtreme Protection Technology) for use in outdoor applications or harsh environments, protection from dust and dripping water is enhanced
Externally accessible brushes for easy serviceability
Compact design at only 486 mm long
Lightweight for reduced operator fatigue

Capacity:	Pipe: 130 mm (5-1/8") Wood: 255 mm (10")
Length of Stroke:	32 mm (1-1/4")
Strokes Per Minute (spm):	0 - 2.800
Vibration Level:	Cutting Boards: 13,0 m/s² Cutting Wooden Beams: 12,5 m/s²
Vibration K Factor:	1,5 m/s²
Sound Pressure Level:	84 dB(A)
Sound Power Level:	95 dB(A)
Noise K Factor:	3 dB(A)
Dimensions (L x W x H):	486 x 81 x 223 mm
Net Weight:	3,5 kg
Power Supply Cord:	2,5 m
