511-711-20

2-Point Inside Measuring Instrument Bore Gauge

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Inch-Metric:	Metric
Range:	18 - 35 mm
Graduation:	0.01 mm
Stroke of contact point:	1.2 mm
Measuring depth:	100 mm
No. Dial Indicator:	2046AB
Number of anvils:	9
Accuracy:	2 µm
Repeatability:	0.5 µm
Digital/Analog:	Analog

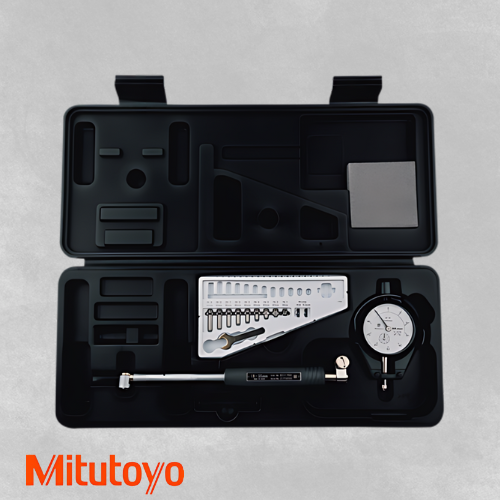

Delivered:	In a box with bore gauge 511-701, dial indicator 2046AB, plastic cover for indicator 21DZA000, 9 anvils, 2 interchangeable washer, spanner 102148
Mass:	330 g
