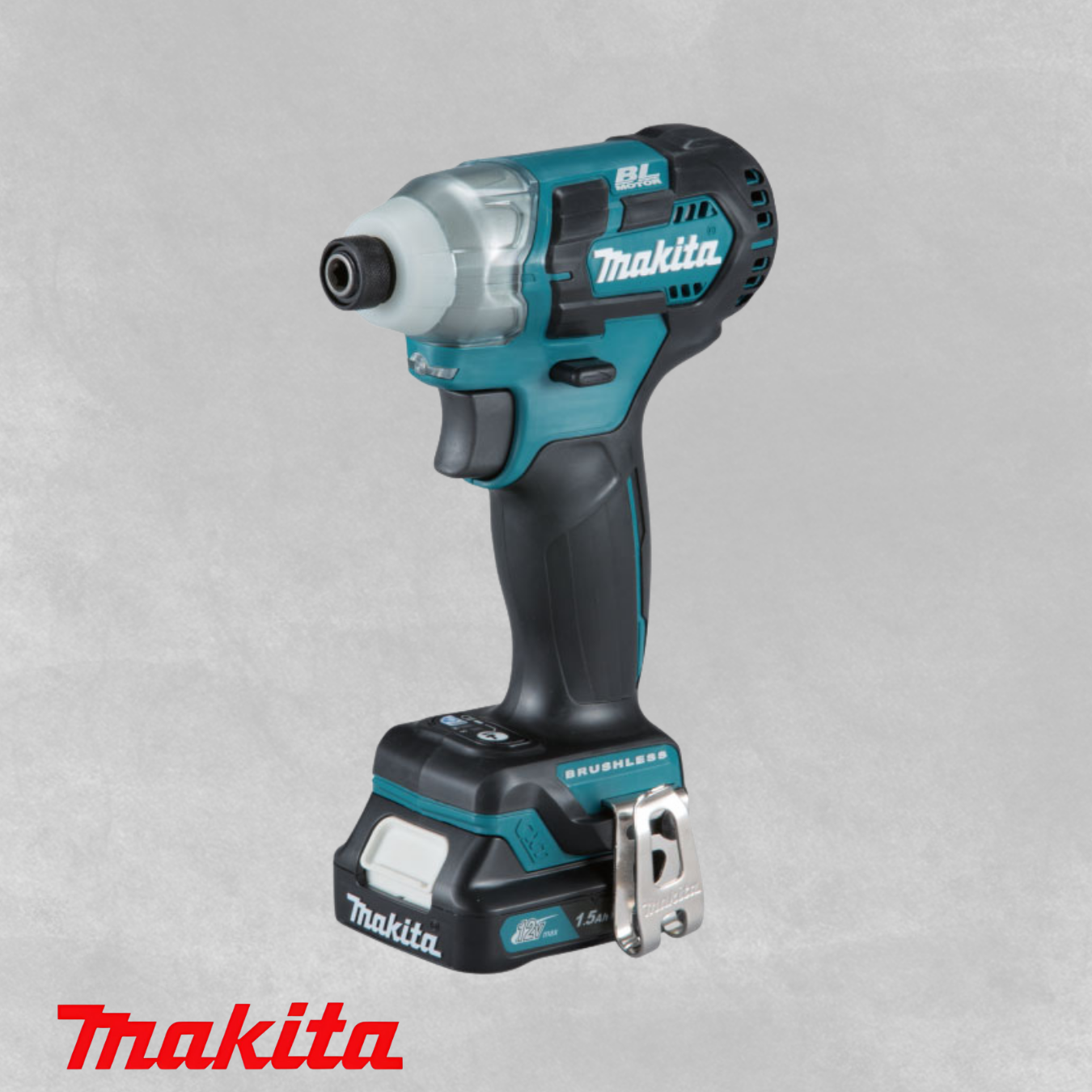

TD 111 DWAE

Cordless Impact Driver

12 Volt Max CXT BL Brushless Cordless Assist Mode 135 N•m Impact Driver

Ultra compact and slim design at only 135 mm (5-5/16″) long
Ultra lightweight for reduced operator fatigue
Power-increased motor delivers 135 N·m (1,200 in.lbs.) of Max Torque in an ultra compact size
3-Mode operation: A-mode / Hard mode / Soft mode for multiple applications
A-Mode feature helps eliminate “screw cam-out” and “cross threading” by driving at low speed until tightening begins
2-Speed power selection switch (0-3,000 / 1,300 RPM & 0-3,900 / 1,600 IPM) provides the user with precise fastening control for a wide range of applications
BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Best possible ergonomic handle for screwdriving applications
Ergonomically designed handle with soft grip provides increased comfort
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Built-in LED light with preglow and afterglow functions illuminates the work area
Convenient 6.35 mm (1/4″) hex chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating
Slide style battery and improved ergonomic grip
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size

Product Specifications

Capacity:	Machine Screw: M4 - M8 (5/32" - 5/16") Standard Bolt: M5 - M14 (3/16" - 9/16") High Strength Bolt: M5 - M12 (3/16" - 1/2") Coarse Thread (In Length): 22 mm - 90 mm (7/8" - 3-1/2")
Hex Shank:	6,35 mm (1/4")
No Load Speed (rpm):	Hard: 0 - 3.000 Soft: 0 - 1.300
Impacts Per Minute (ipm):	Hard: 0 - 3.900 Soft: 0 - 1.600
Max Fastening Torque:	135 N•m
Vibration Level:	12,5 m/s²
Vibration K Factor:	1,5 m/s²
Sound Pressure Level:	94 dB(A)
Sound Power Level:	105 dB(A)
Noise K Factor:	3 dB(A)
Dimensions (L x W x H):	135 x 66 x 210 mm
Net Weight:	1,1 kg
