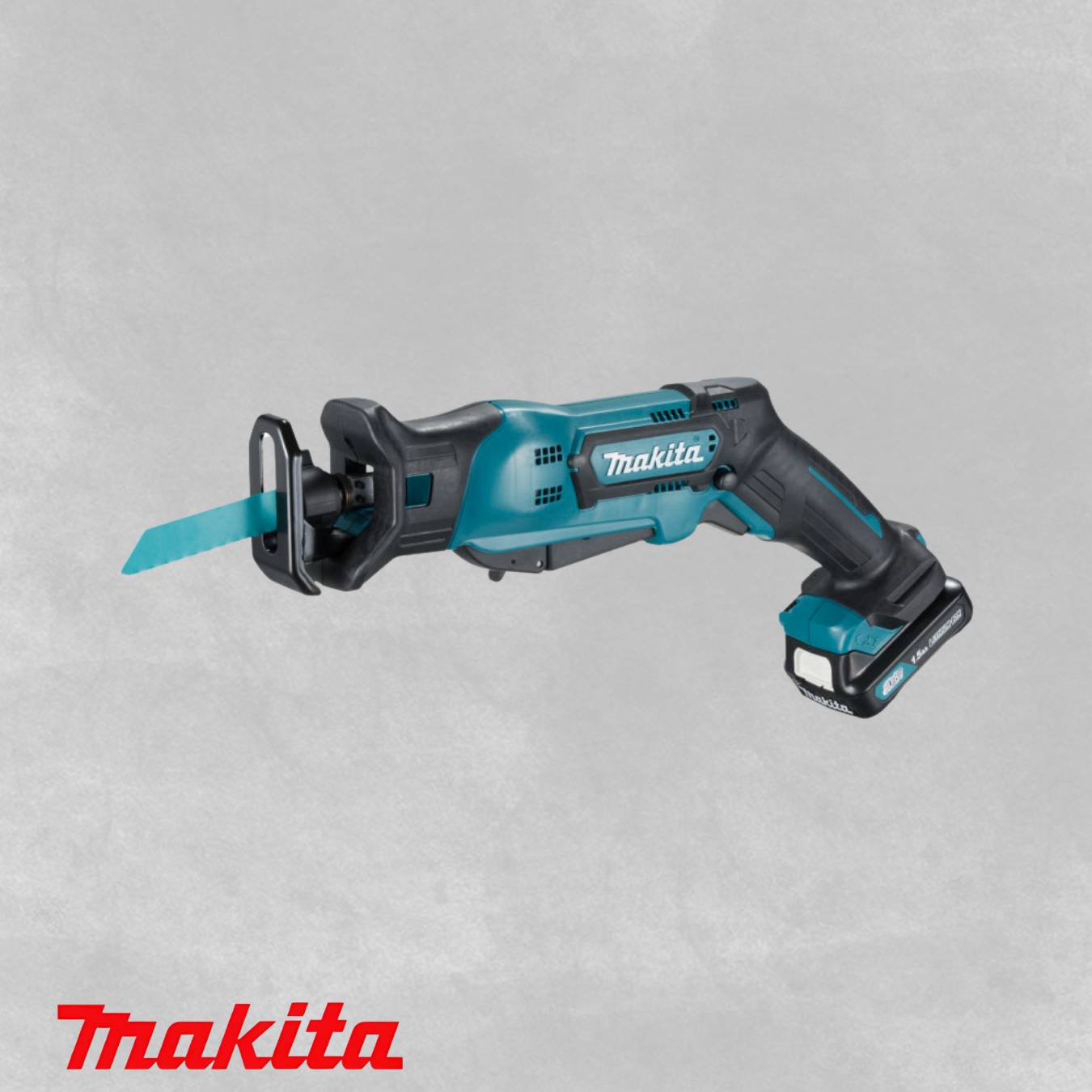

JR 103 DWYE

Cordless Recipro Saw

Slide style battery and improved ergonomic grip
Variable speed motor delivers 0-3,300 SPM combined with a 13 mm length stroke to provide faster cutting
Exclusive dual-position on/off switch design allows for either paddle or trigger switch operation
Toolless blade change system allows for faster blade installation and removal for increased productivity (JR103D only)
Accepts both Recipro and Jig Saw blades (JR105D only)
Ergonomically designed handle with soft grip provides increased comfort
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Compact design at 376 mm long
Lightweight for reduced operator fatigue
Ideal for a wide range of cutting applications
Cuts PVC and ABS pipe, EMT, drywall, wood, and more
Battery protection circuit protects against overloading, over-discharging and over-heating
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Electric brake for increased operator safety
Shoe adjustment helps to lengthen the life of the blade
Onboard hex wrench for fast and easy shoe adjustment and keeping it from lost
Lock-off function for operator safety

Length of Stroke:	13 mm (1/2")
Strokes Per Minute (spm):	0 - 3.300
Capacity:	Pipe: 50 mm (2") Wood: 50 mm (2")
Vibration Level:	Cutting Boards: 8,0 m/s²
Vibration K Factor:	Cutting Boards: 1,5 m/s² Cutting Wooden Beams: 1,5 m/s²
Sound Pressure Level:	78 dB(A)
Noise K Factor:	3 dB(A)
Dimensions (L x W x H):	376 x 66 x 186 mm
Net Weight:	1,3 kg
