Mitutoyo 511-713-20

511-713-20

2-Point Inside Measuring Instrument Bore Gauge

50 mm - 150 mm, 0,01 mm

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Product Specifications

Inch-Metric:
Metric
Range:
50 - 150 mm
Graduation:
0.01 mm
Stroke of contact point:
1.6 mm
Measuring depth:
150 mm
No. Dial Indicator:
2046AB
Number of anvils:
11
Accuracy:
2 µm
Repeatability:
0.5 µm
Digital/Analog:
Analog
Delivered:

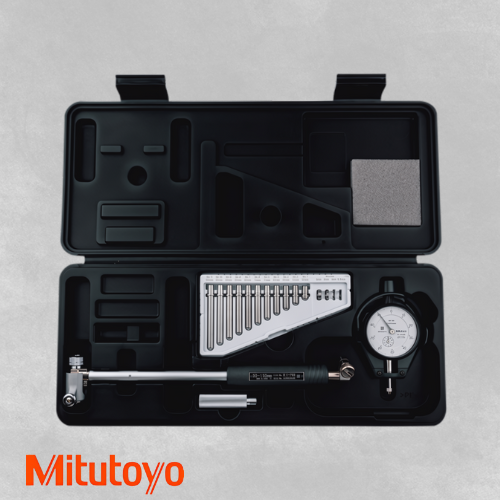

In a box with bore gauge 511-703, dial indicator 2046AB, plastic cover for indicator 21DZA000, 11 anvils, 4 interchangeable washer, 1 sub-anvil
Mass:
420 g
