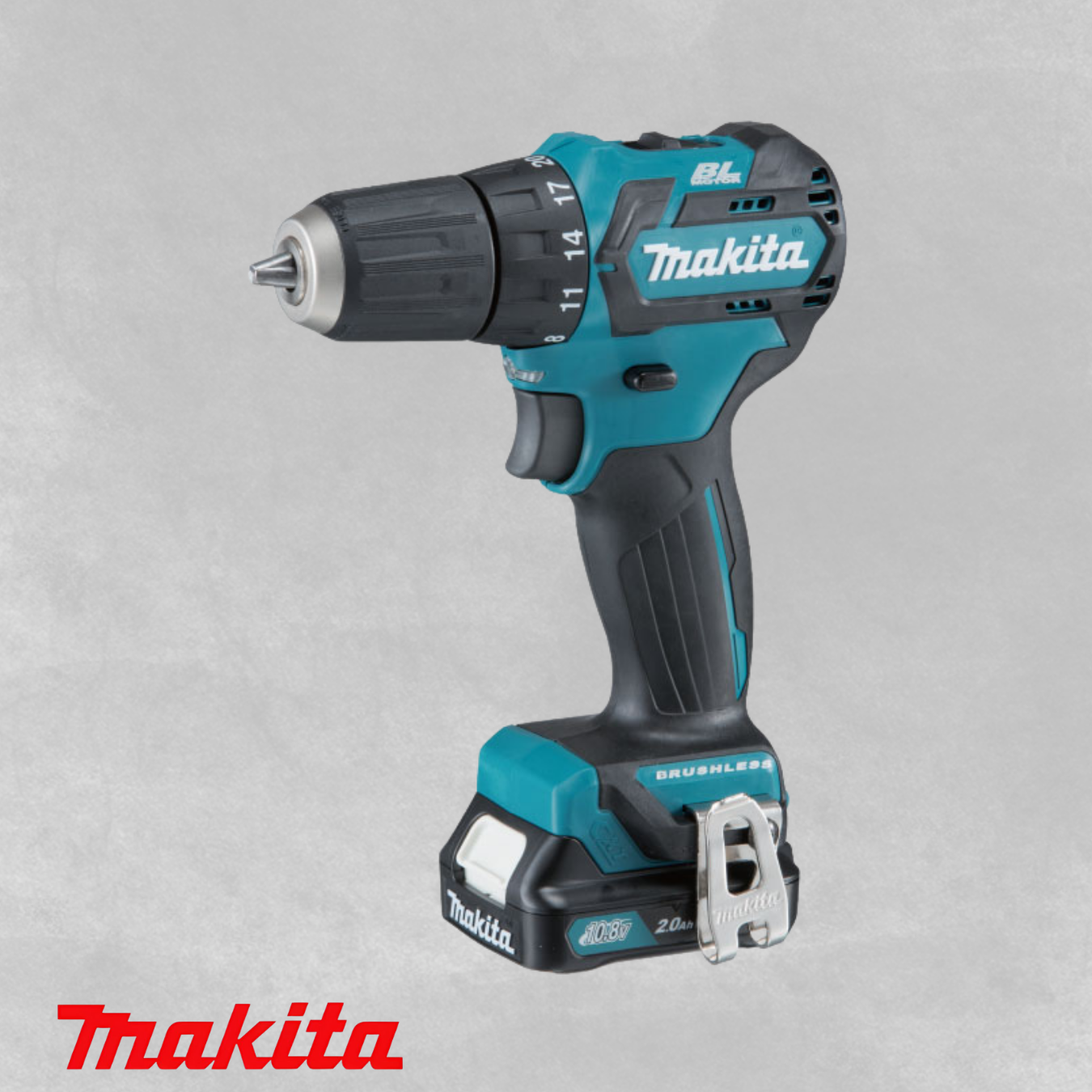

DF 332 DWAE

Cordless Driver Drill

Ultra-compact design and more work amount thanks to the newly developed BL motor and newly developed 12V max slide Li-Ion battery
Slide style battery and improved ergonomic grip
BL motor delivers 35 N·m of max torque
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor with high power to weight and size ratio
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Compact and ergonomic design at only 154 mm long
Lightweight for reduced operator fatigue
12V max slide battery design enables the tool to stand on its own for user convenience
Multi-contact terminals ensure stable contact with battery even under extreme vibration
Ergonomically designed handle with soft grip provides increased comfort
Built-in LED light with pre-glow and afterglow functions illuminates the work area
Part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size
Variable 2-speed (0-450 & 0-1,500 RPM) for a wide range of drilling and fastening applications
Best possible ergonomic handle for drilling applications
Convenient 10 mm keyless chuck for quick bit changes
Battery protection circuit protects against overloading, over-discharging and over-heating

Capacity:	Steel: 10 mm (3/8") Wood: 28 mm (1-1/8")
Chuck Capacity:	0,8 mm - 10 mm (1/32" - 3/8")
No Load Speed (rpm):	High: 0 - 1.500 Low: 0 - 450
Max. Fastening Torque:	Hard: 35 N•m Soft: 21 N•m
Max. Lock Torque:	32 N•m
Vibration Level:	Drilling into Metal: 2,5 m/s² or Less
Vibration K Factor:	Drilling into Metal: 1,5 m/s²
Sound Pressure Level:	72 dB(A)
Noise K Factor:	3 dB(A)
Max. Output:	250 Watt
Dimensions (L x W x H):	154 x 66 x 217 mm
Net Weight:	1,2 kg
