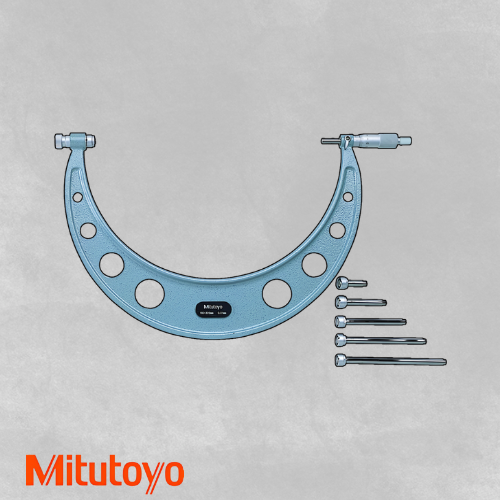

Mitutoyo 104-136A

104-136A

Outside Micrometer Interchangeable Anvil

150 mm - 300 mm

A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.

Product Specifications

Digital/Analog:
Analog
Delivered:
Including box, key, setting standard (6 pcs.), anvils (6 pcs.)
Inch-Metric:
Metric
Range:
150 - 300 mm
Graduation:
0,01 mm
Limit of error:
±8 µm
Spindle feed error:
3 µm
Flatness:
0,6 µm
Parallelism:
5 µm
Measuring face:
Carbide-tipped micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Measuring force:
5 - 10 N
Setting standard:
6 (100, 125, 150, 175, 200, 225 mm)
Interchangeable anvils:
6
Delivered:
Including box, setting standard, anvils, key
Mass:
2.65 kg
