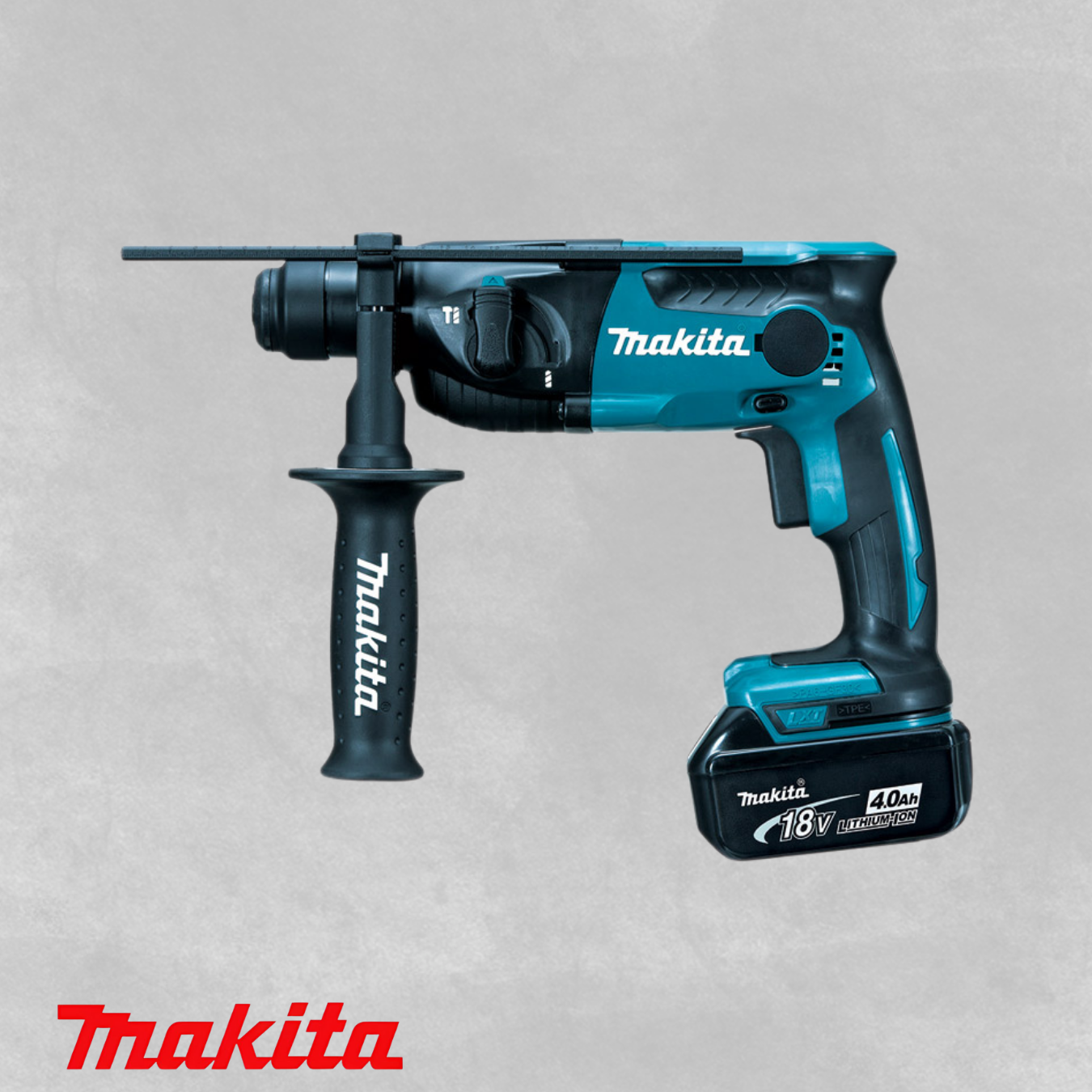

DHR 165 RTE

Cordless Rotary Hammer Drill

Compact and Light weight
Ergonomic handle for perfect tool control and minimum hand fatigue and pain
2-mode operation for “Rotation Only” or “Hammering with Rotation”
Side grip with elastomer soft grip
Conveniently located push button for rotation reverse
Built-in LED light with afterglow function illuminates the work area
Extreme Protection Technology (XPT) engineered to provide increased dust and water resistance in harsh job site conditions
One touch sliding chuck enables quick and easy bit changes
Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
Inline soft grip design maximises power thrust
Variable speed trigger allows operator to adjust speed based on materials or application
Depth gauge for increased drilling consistency
Electric brake for maximum productivity and increased operator safety
1.3 Joules (EPTA) impact energy delivers high performance
Battery protection circuit protects against overloading, over-discharging and over-heating

Impact Energy:	1,2 Joule
Capacity:	Concrete: 17 mm (11/16") Steel: 10 mm (3/8") Wood: 13 mm (1/2")
Blows Per Minute (bpm):	0 - 4.800
No Load Speed (rpm):	0 - 680
Vibration Level:	Hammer Drilling into Concrete: 9,0 m/s² Drilling into Metal: 2,5 m/s² or Less
Vibration K Factor:	Hammer Drilling into Concrete: 1,5 m/s² Drilling into Metal: 1,5 m/s²
Sound Pressure Level:	86 dB(A)
Sound Power Level:	97 dB(A)
Noise K Factor:	3 dB(A)
Dimensions (L x W x H):	273 x 86 x 211 mm
Net Weight:	2,1 kg
