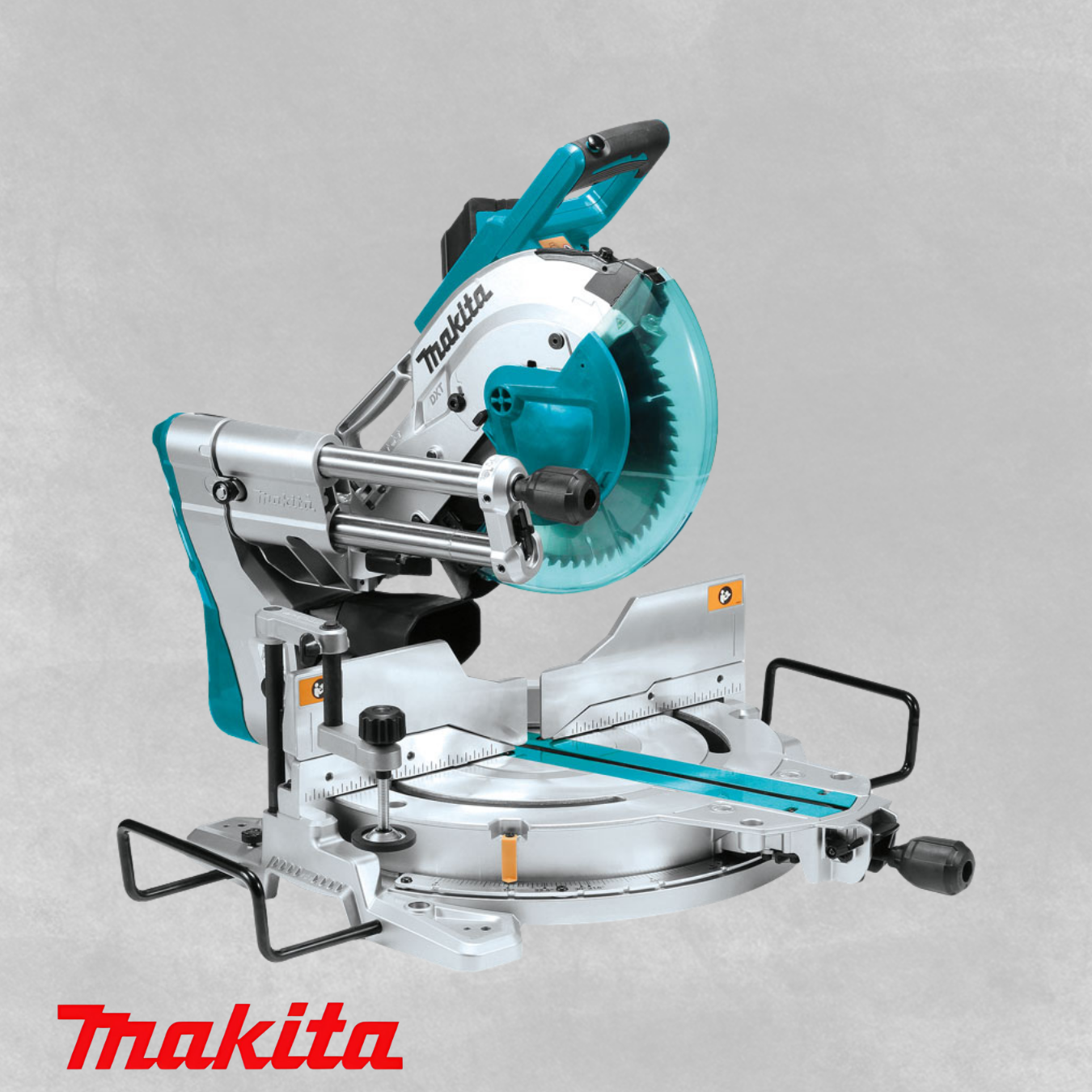

LS 1019 L

Slide Compound Miter Saw

Large turn base supports workpiece securely for increased stability
Integrated guide fences for increased rigidity and high cutting accuracy
Increased dust extraction rate for a cleaner work environment
Rail-forward design enables to be placed against a wall for maximizing work space
Single sliding system enables smooth operation to produce superior cuts
Front knob for easy bevel angle adjustment
Increased sliding durability of safety cover
Slide lock for locking the sliding movement of the carriage
Holders are provided on both sides of the tool to hold long workpieces horizontally
Largest crown molding cutting capacity in its class
Exclusive linear ball bearings engineered to deliver “dead-on” accurate cuts
Increased capacity for up to 168 mm (6-5/8″) crown molding (vertically nested), 133 mm (5-1/4″) baseboard (vertical), and 310 mm crosscuts at 90°
Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity (133 mm (5-1/4″))
Miters 0°-60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left and right)
Factory calibrated class II laser enables accurate alignment of blade and cutting line
Compact and lightweight for easy jobsite portability
Powerful 1,510 W direct drive motor requires less maintenance and delivers 3,200 RPM
Exclusive 120 mm (4-3/4″) tall dual sliding fence system features upper and lower fence adjustments for more precise miter and bevel cuts

Continuous Rating Input:	1.510 Watt
Blade Diameter:	260 mm (10-1/4")
Bevel Angle:	48° L / 48° R
Miter Angle:	60° L / 60° R
Max. Cutting Capacity (Bevel/Miter):	90°/90°: 68 x 310 mm 90°/45°LR: 68 x 218 mm
No Load Speed (rpm):	3.200
Vibration Level:	2,5 m/s² or Less
Sound Pressure Level:	91 dB(A)
Sound Power Level:	101 dB(A)
Noice K Factor:	3 dB(A)
Dimensions (L x W x H):	805 x 644 x 660 mm
Net Weight:	26,3 kg
Power Supply Cord:	2,5 m
