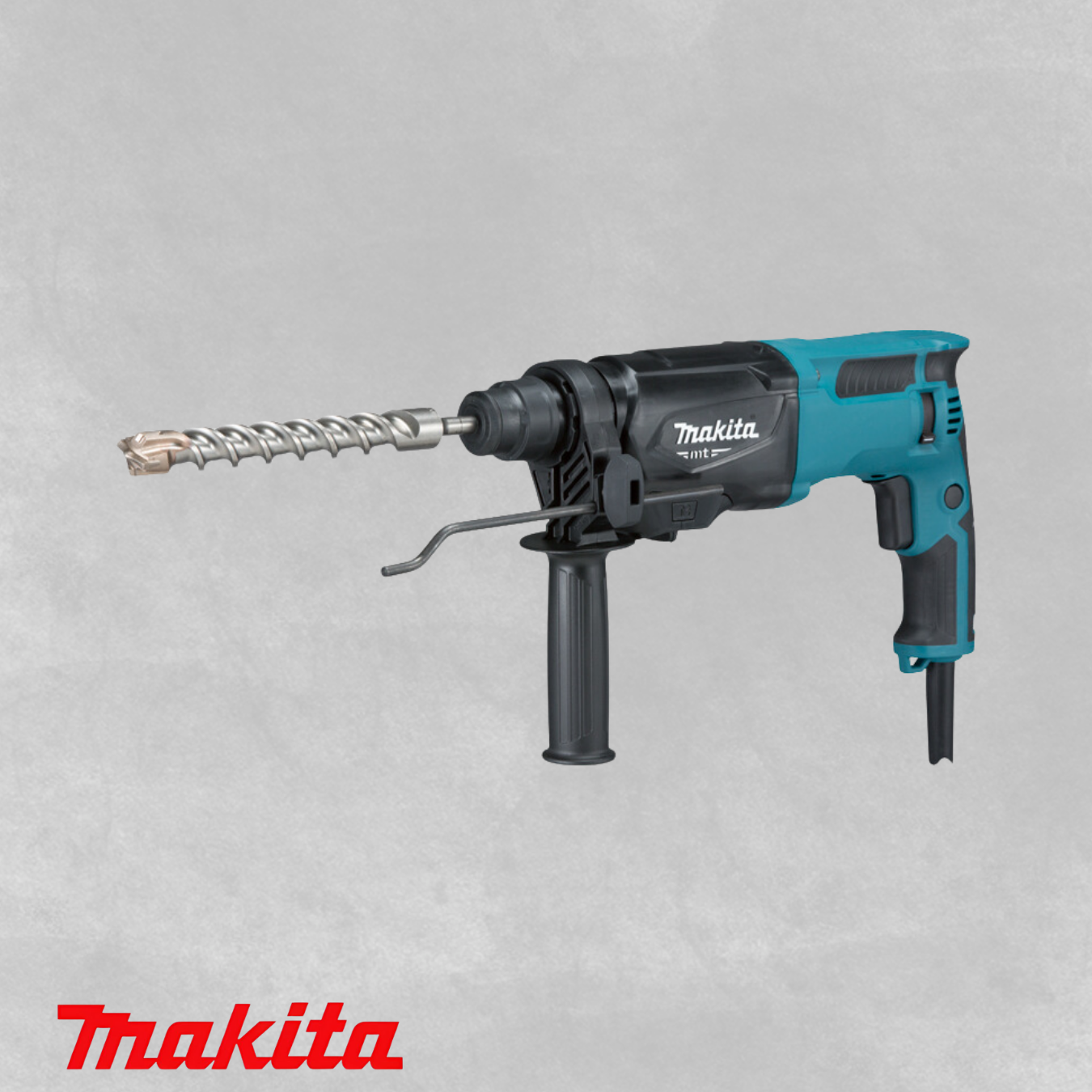

M 8701 B26

Combination Hammer Drill

High performance and durability at less expense
Satisfactory performance: the same feeling of powerful chipping as PUMPKIN PTT2-26DFR
3-Mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only” for multiple applications
Re-located operating mode lever for increased protection and durability
Improved bit guide for increased bit stability during drilling applications
Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
Soft grip provides more comfort and control
Powerful 800 W motor delivers 2.3 J of impact energy to handle the most demanding applications
Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
Forward/reverse lever – position of the switch allows brushes to be positioned so that the drill maintains same speed and torque in forward and reverse
Variable speed trigger allows operator to adjust speed based on materials or application
One-touch sliding chuck for easy bit installation and removal
Depth gauge for increased drilling consistency
Recessed lock-on button for continuous use
Double insulated

Continuous Rating Input:	800 Watt
Impact Energy:	2,3 Joule
Capacity:	Concrete: 26 mm (1") Concrete (Core-Bit): 68 mm (2-11/16") Diamond (Core-Bit) w/ Dry Type: 80 mm (3-1/8") Steel: 13 mm (1/2") Wood: 32 mm (1-1/4")
Blows Per Minute (bpm):	0 - 4.500
No Load Speed (rpm):	0 - 1.200
Vibration Level:	Hammer Drilling into Concrete: 16,5 m/s²
Sound Pressure Level:	90 dB(A)
Sound Power Level:	101 dB(A)
Noice K Factor:	3 dB(A)
Dimensions (L x W x H):	362 x 71 x 194 mm
Net Weight:	2,7 kg
Power Supply Cord:	4,0 m
