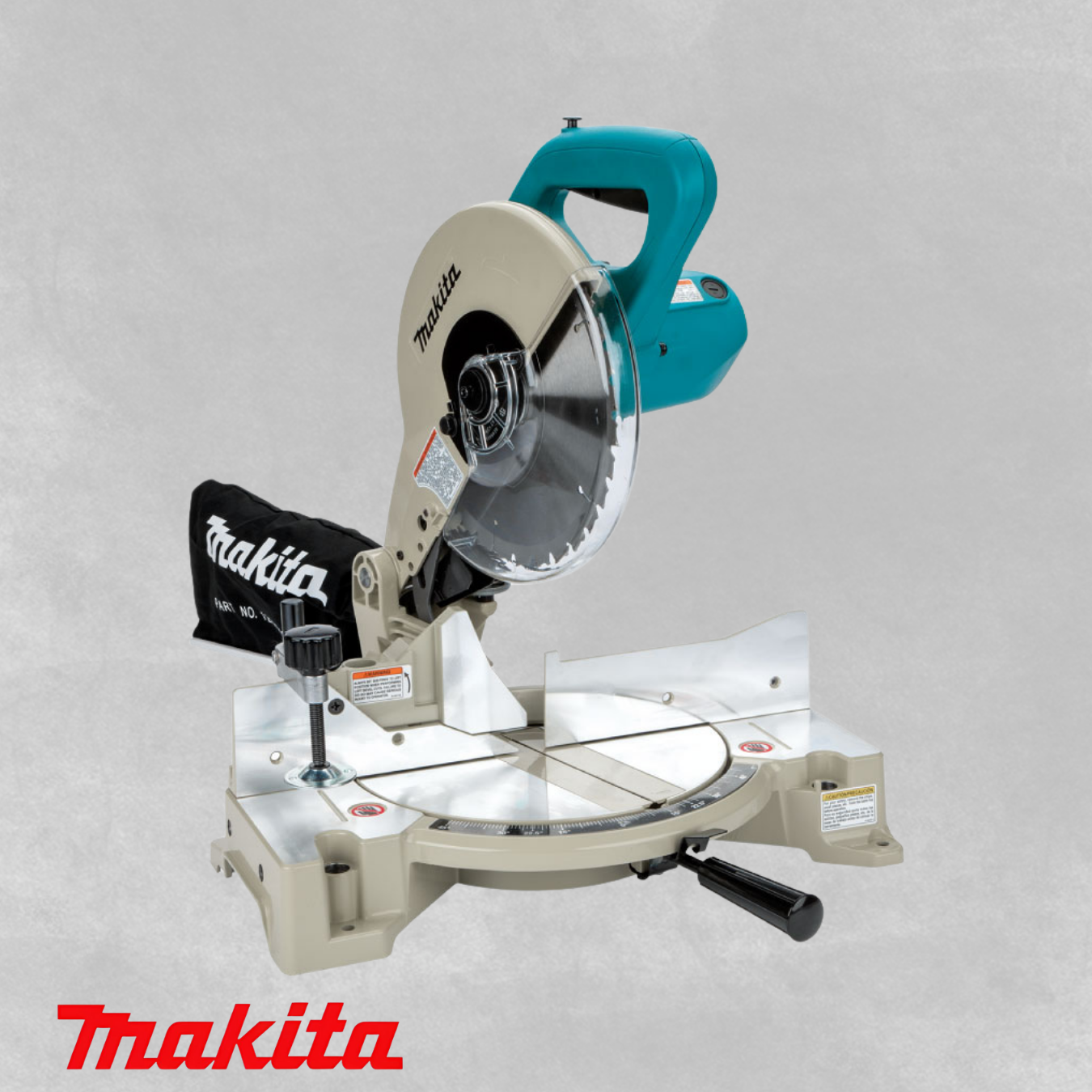

LS 1040

Compound Miter Saw

Pivoting Fence for Supporting Larger Material
Powerful 1,650 W direct drive motor for improved performance; 4,600 RPM
Dual post compound pivoting arm
Miter cuts 0°-45° left and 0°-52° right
Positive miter stops at 9 settings: 15°, 22.5°, 30°, 45°, right or left and 0° (90° cuts)
Bevel cuts up to 45° to the left
Lightweight for easy portability
Precision machined aluminum base ensures accurate cuts
Performs compound cutting operations
Electric brake for maximum productivity
Dust bag for a cleaner work environment
Holders are provided on both sides of the tool to hold long workpieces horizontally
Shaft lock for easy blade changes
Double insulated

Continuous Rating Input:	1.650 Watt
Blade Diameter:	260 mm (10-1/4")
Bevel Angle:	45° L
Miter Angle:	45° L / 52° R
Max. Cutting Capacity (Bevel/Miter):	90°: 90,5 mm x 95 mm (3-9/16" x 3-3/4") 45°: 90,5 mm x 67 mm (3-9/16" x 2-5/8")
No Load Speed (rpm):	4.600
Dimensions (L x W x H):	530 x 476 x 532 mm
Net Weight:	19,1 kg
Power Supply Cord:	2,5 m
